Data Sheet

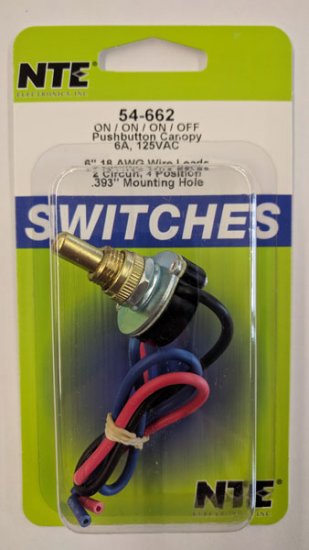

SWITCH PUSHBUTTON CANOPY TWO CIRCUIT FOUR POSITION 6A 125VAC 3A 250VAC
WITH 6" WIRE LEADS

Features:
2 Circuit, 4 Position Canopy Switch
Sequence − Load 1 On, Load 2 On, Load 1 & 2 On, All Off

Specifications:
Current Rating: 1A 125VT, 3A 250VAC, 6A 125VAC, 6A 125VL
Insulation Resistance: 100 Megohms (min.)
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: +32 to +185 F (+0 to +85 C)
Electrical Life: 6,000 cycles (min.)
Mechanical Life: 6,000 cycles (min.)
Terminal Type: 18 AWG, 6” length
Mounting Hole: 0.393" (10.0mm)

Additional Model #'s
75-54-662
75-54662
54-662
54662

UPC: 768249292043
