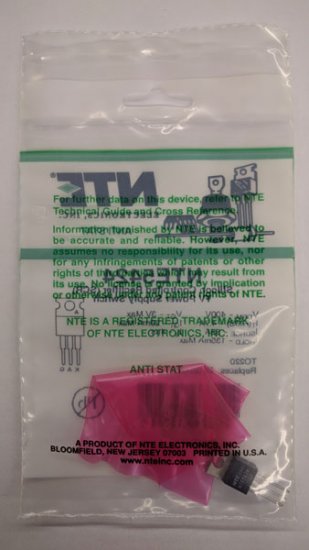

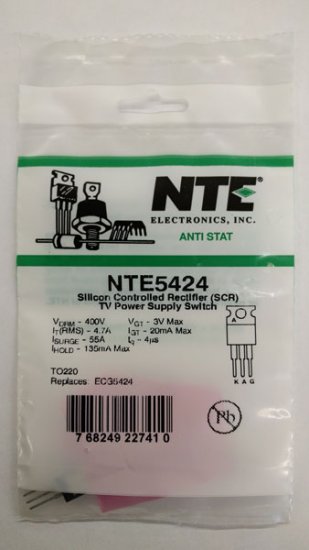

NTE5424 SCR For TV Power Supply Switching, TO220

Model: NTE5424
Availability : Out of Stock
  • NTE5424 SCR For TV Power Supply Switching, TO220
  • NTE5424 SCR For TV Power Supply Switching, TO220
  • NTE5424 SCR For TV Power Supply Switching, TO220
$7.99
Current Reviews: 0 Add Your Review
 Sold Out

Manual/Spec Sheet

NTE5424
Silicon Controlled Rectifier (SCR)
for TV Power Supply Switching, TO220

Description:
The NTE5424 is a silicon controlled rectifier (SCR) in a TO220 type package designed for high-speed switching applications such as power inverters, switching regulators, and high-current pulse applications. This device features fast turn-off, high dv/dt, and high di/dt characteristics and may be used at frequencies up to 25kHz.

Features:
Fast Turn-Off Time
High di/dt and dv/dt Capabilities
Shorted-Emitter Gate-Cathode Construction
Low Thermal Resistance
Center-Gate Construction

Replaces:
ECG5424

Additional Model #'s
76-NTE5424
NTE5424

UPC: 768249227410
