Data Sheet

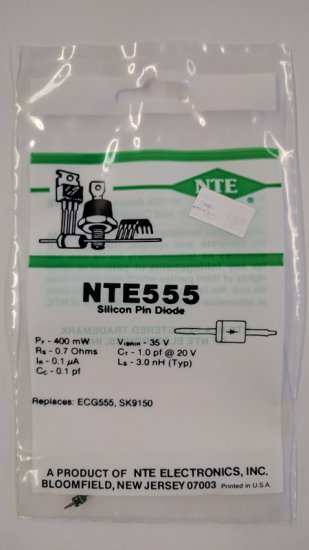

NTE555
Silicon Pin Diode
UHF/VHF Detector

Description:
The NTE555 is designed primarily for high-efficiency UHF and VHF detector applications. It is readily adaptable to may other fast switching RF and digital applications.

Features:
Schottky Barrier Construction Provides Stable Characteristics by Eliminating
the “Cat-Whisker” or “S-Bend” Contact
Very Low Capacitance: 1.0pF
Extremely Low Minority Carrier Lifetime: 100ps (Max)
High Reverse Voltage: VR = 50V
Low Reverse Leakage Current: IR = 200nA (Max)

Replaces:
ECG555, SK9150

Additional Model #'s
76-NTE555
NTE555

UPC: 768249236917
