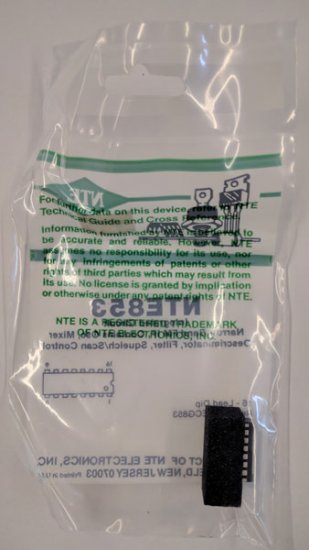

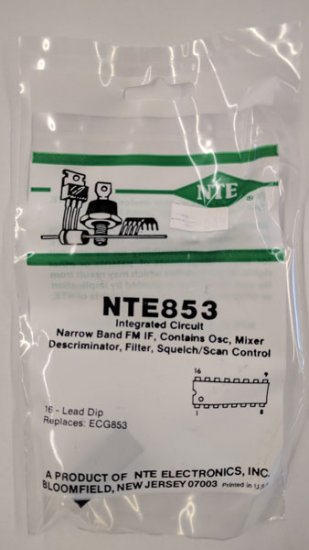

NTE853 IC, Low Power, Narrow Band, FM IF System, 16-Lead DIP

Model: NTE853
Availability :  In Stock
  • NTE853 IC, Low Power, Narrow Band, FM IF System, 16-Lead DIP
  • NTE853 IC, Low Power, Narrow Band, FM IF System, 16-Lead DIP
  • NTE853 IC, Low Power, Narrow Band, FM IF System, 16-Lead DIP
$5.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE853
Integrated Circuit
Low Power, Narrow Band, FM IF System

Description:
The NTE853 is a low power narrow band FM IF system which includes: Oscillator, Mixer, Limiting
Amplifier, Quadrature Discriminator, Active Filter, Squelch, Scan Control and Mute Switch. The
NTE853 is designed for use in FM dual conversion communications equipment.

Features:
Low Drain Current (3mA Typ @ VCC = 6V)
Excellent Sensitivity: Input Limiting Voltage (-3.0dB) = 5.0µV (Typ)
Low Number of External Parts Required

Replaces:
ECG853

Additional Model #'s
76-NTE853
NTE853

UPC: 768249356615
