Data Sheet

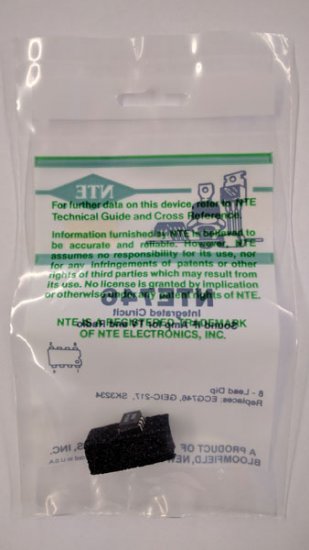

NTE746
Integrated Circuit
TV Video IF Amplifier

Description:
The NTE746 is a monolithic integrated circuit in an 8-Lead DIP type package with wide-range AGC
for replacement of 1st and 2nd IF stages in solid-state color and black and white TV sets. It will directly drive a 3rd IF stage.

Features:
Center Frequency: FO = 45MHz
Bandwidth: BW = 6MHz
Power Gain: 50dB Min
AGC Range: 60dB Min
Low Reverse-Transfer Admittance: 1µmho Typ
Y21 Constant to 75MHz
12V Operation, Single-Polarity Power Supply
Total Supply Current: 20mA Typ
Nearly Constant Input and Output Admittance
over the Entire AGC Range

Applications:
TV Video IF
Defense Communications Satellite Programs
Combined AM/FM Radio IF Amplifiers
Linear Switch or Chopper for Multiplex Modulation or Demodulation

Replaces:
ECG746, GEIC-217, SK3234

Additional Model #'s
76-NTE746
NTE746

UPC: 768249342717
