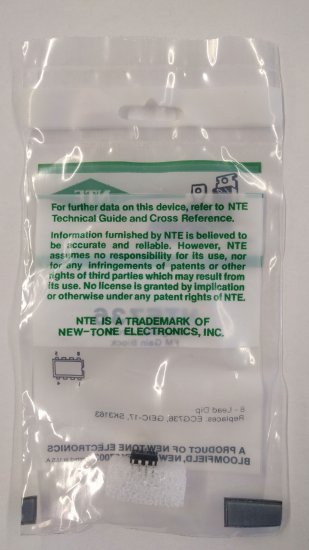

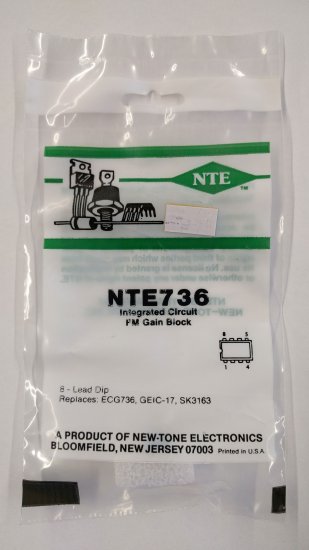

NTE736 IC, FM IF Amp, 8-Lead DIP

Model: NTE736
Availability :  In Stock
  • NTE736 IC, FM IF Amp, 8-Lead DIP
  • NTE736 IC, FM IF Amp, 8-Lead DIP
  • NTE736 IC, FM IF Amp, 8-Lead DIP
$7.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE736
Integrated Circuit
FM IF Amp

Description:
The NTE736 is a high performance monolithic FM Gain Block using the planar epitaxial process. The
FM gain block consist of a three stage direct coupled amplifier with 330? input and output terminations and the 7pF shunting capacitance required for a 10.7MHz FM IF strip utilizing commercially available ceramic filters. Included on the chip is a 7.8V active regulator providing up to 10mA of current to an external load such as an FM tuner.

The NTE736 features full temperature compensation for the IF amplifier and the 7.8V regulator. Excellent power supply rejection eliminates the need for an external regulated supply. An output from the second stage of the IF amplifier provides a means of external gain control without affecting the input or output terminations. The device is packaged in a 8-lead mini DIP.

Features:
50dB Voltage Gain at 10.7MHz
330? Input and Output Terminations
Optimized Gain Vs. Temperature Characteristics
Temperature Compensated 7.8V Active Regulator Providing up to 10mA of Current
Short Circuit Protection for all External Connections

Replaces:
ECG736, GEIC-17, SK3163

Additional Model #'s
76-NTE736
NTE736

UPC: 768249294610
