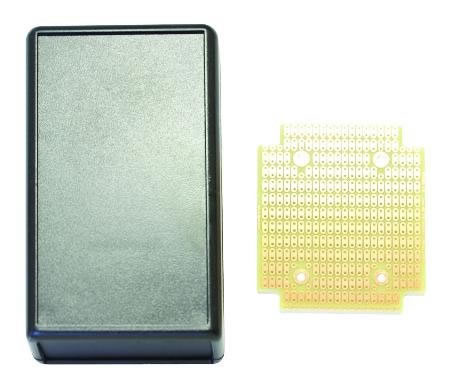

2.4” X 2.7” ProtoBox Kit
The box is the Hammond no. 1593Q (black) and the PC board is 2.4 x 2.7 inches. A “battery door” allows access for one or two AA, up to 4 AAA or a Nine volt battery. (user must supply holder). Board material: FR-4 with one ounce copper. Holes are paired and .042” in diameter to accept leads from common components. Board mounts with four 4-40 screws, included. Box color black, ABS plastic.
Box size: 4.4 x 2.6 x 1.1 inches.

All products in this series are manufactured Lead-Free and compliant with RoHS.

ProtoBox Kits with board and Hammond box. A series of Protoboards that include a well made box from Hammond, one of our industry’s leading box makers. If you need to replace the board due to circuit changes, each of the ProtoBox circuit boards included in these kits is also sold separately. Note: please be sure to use the Philmore part numbers when ordering, all of which begin with the 12– prefix (example 12-200 etc.) We do show Hammond numbers on packages for your convenience, but our systems will recognize only the Philmore numbers.
