Data Sheet

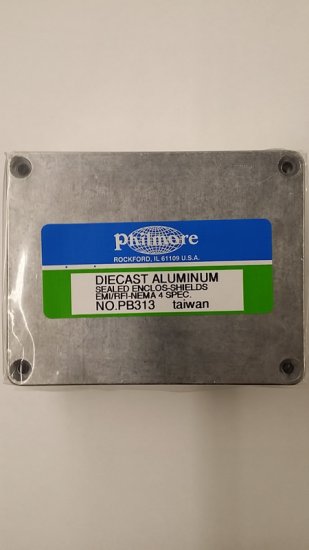

Sealed Die-Cast Aluminum Enclosures

These enclosures are ideal for housing sensitive electronic assemblies,
pneumatic, hydraulic and electrical devices in commercial and industrial
environments providing effective shielding of EMI & RFI signals.

Features & Specifications:
Die-cast aluminum alloy, resistant to atmospheric and marine corrosion. In natural finish
Lids incorporates a recessed oil resistant neoprene gasket.
Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of dust & moisture.
Designed to meet IP65 of IEC529 and NEMA 4 specifications for dust & moisture.
Internal guide slots for mounting PC boards vertically
Bosses on internal base allows fixing of PC boards horizontally or for connection of earth grounding terminals, etc.
Lid fixing screws are recessed captive screws, M4 stainless steel (non -magnetic)
Screw holes for lid mounting are roll threaded.
Ground screw and washer provided are copper-plated.

Length: 4.5"
Width: 3.54"
Height: 2.165"

Additional Model #'s
70-PB313
PB313

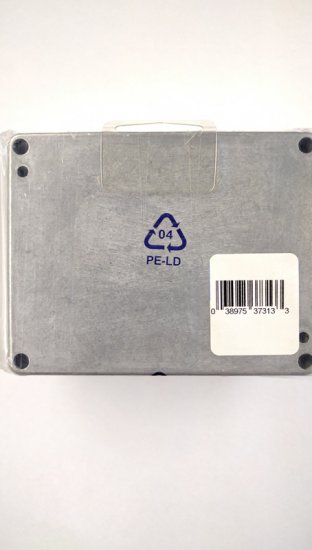

UPC: 038975373133
