  5. Sealed ABS Enclosure (Grey) 6.75" x 4.75" x 2.165"

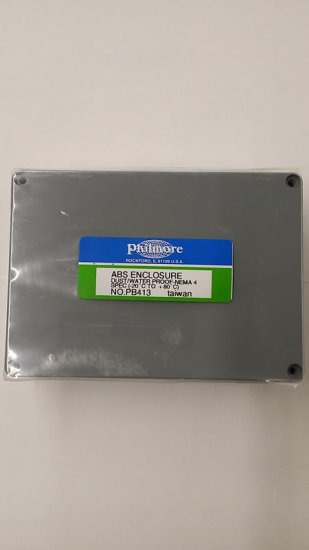

Sealed ABS Enclosure (Grey) 6.75" x 4.75" x 2.165"

Model: PB413
Availability : Out of Stock
  • Sealed ABS Enclosure (Grey) 6.75" x 4.75" x 2.165"
  • Sealed ABS Enclosure (Grey) 6.75" x 4.75" x 2.165"
  • Sealed ABS Enclosure (Grey) 6.75" x 4.75" x 2.165"
$19.99
Current Reviews: 0 Add Your Review
 Sold Out

Data Sheet

Sealed ABS Enclosures

These versatile cases have many uses in the electrical and electronic industries. They are easily drilled or punched, making them ideal as circuit enclosures and junction boxes.

Features:
High impact ABS material molded in dark grey color.
Lids & bases have tongue and groove sealing system with a neoprene gasket.
Wall mounting holes and lid fixing screws are outside sealing area thus preventing the ingress of dust and moisture.
Designed to meet IP65 of IEC529 and NEMA 4 specifications for dust & moisture.
Internal guide slots for mounting PC boards vertically
Bosses on internal base allows fixing of PC boards horizontally or for connection of terminals, etc. into threaded brass inserts.
Lid fixing screws are M4 stainless steel (non-magnetic) into threaded brass inserts.
Operating temperatures: -20o-+80oC

Color: Grey
Length: 6.75"
Width: 4.75"
Height: 2.165"

Additional Model #'s
70-PB413
PB413

UPC: 038975374130
