Manual/Spec Sheet

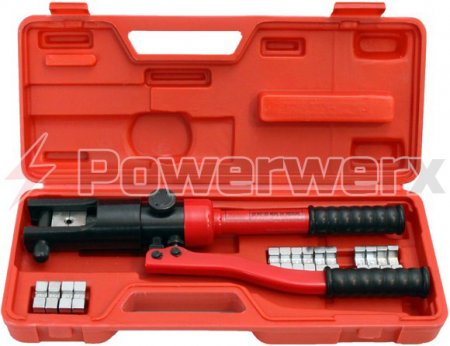

The ideal Hex crimping tool for APP contact gauges 6, 4, 2, 1, 1/0, 2/0, 3/0 and 4/0. Features interchangeable dies for various size contacts providing a large range of crimps. The hand pump is easy to operate and provides positive crimping action.

The Hydraulic Crimping tool is not endorsed by Anderson Power Products®. Only official tooling solutions recommended by APP may be acceptable for safety agency approvals such as UL, CSA and TUV. Official tooling solutions are available for purchase at a higher price.

Operation:

Crimping Scope: 10 - 120mm (6 - 4/0 gauge)
Material: Copper/Aluminum
Max Working Pressure: 12T
Max Working Travel: 14mm (0.47in)
Physical dimensions and materials:

Weight: 3.2kg (7.1 lbs)
Overall Dimensions: 430mm x 120mm x 34mm (16.93in x 4.72in x 2.76 in)
Included Hexagonal Dies:

10, 16, 25, 35, 50, 70, 95, 120mm


Anderson Power Products HYD-1 Cross Reference Chart

Anderson Series Anderson Part No Wire Gauge HYD-1 Tool Die Number
PP75/SB50 5900 6 10mm
PP75/SB50 5952 8 10mm
PP75/SB50 5915 10 10mm
SB120/PP120 1319 2 35mm
SB120/PP120 1319G4 4 25mm
SB120/PP120 1319G6 6 35mm
SB175/PP180 1382 1/0 35mm
SB175/PP180 1347 1 35mm
SB175/PP180 1383 2 35mm
SB175/PP180 1384 4 35mm
SB175/PP180 1348 6 16mm
SB350 917 1/0 35mm
SB350 907 2/0 70mm
SB350 916 3/0 70mm
SB350 908 4/0 70mm

Additional Model #'s
215-HYD-1
215-HYD1
HYD-1
HYD1
