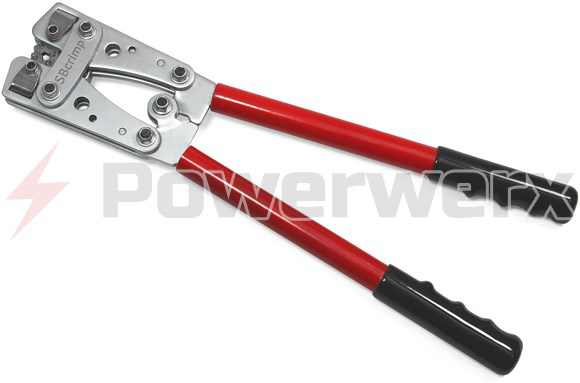

Crimp SB50, SB120, SB175 and Powerpole PP75, PP180 large contacts in a single tool. Rotating hexagonal dies are always in tool. For light and medium duty applications. Comfortable insulated grips. Safe, small lightweight and easy to handle. 15" length.

The Handheld Hex Crimping tool is not endorsed by Anderson Power Products®. Only official tooling solutions recommended by APP may be acceptable for safety agency approvals such as UL, CSA and TUV. Official tooling solutions are available for purchase at a higher price.

Introduction
This user manual covers the proper use of the Powerwerx SBcrimp crimping tool. Please read the information contained herein carefully before using the tool.

Operating Procedure

Using the Chart on the next page, determine the proper die position for the style of connector.
To select the correct die set, push in the die pivot pins from the spring side and rotate each die to the proper position.
Strip the cable insulation enough so that the bare conductor seats fully in the connector.
Open the tool and position the connector in the crimp die set.
Insert the bare wire into the connector.
Fully close the die set for a proper crimp.
Tip: Crimp each connector twice for maximum strength and conductivity. Always crimp near the end of the barrel first.
Maintenance
The Powerwerx SBcrimp is factory lubricated with a low friction, high temperature synthetic lubricant. Additional lubrication may be required for very high usage tools. Simply add two or three drops of #30 weight oil to each pivot point. Circulate the oil by opening and closing the tool several times.

Specifications
Operation:

Anderson Power SB50/PP75, SB120/PP120, SB175/PP180
Crimping Scope: 6-50 mm2
Material: Copper/Aluminum
Physical dimensions and materials:

Anderson Power SB50/PP75, SB120/PP120, SB175/PP180
Weight: 2.9 lbs. (1.3 kg)
Overall Length: 16 in. (406 mm)

Additional Model #'s
78-SBCRIMP
SBCRIMP
