4 Position Power Distribution Block for 15/30/45A Powerpoles

Model: PD-4
Availability : Out of Stock
  • 4 Position Power Distribution Block for 15/30/45A Powerpoles
  • 4 Position Power Distribution Block for 15/30/45A Powerpoles
  • 4 Position Power Distribution Block for 15/30/45A Powerpoles
  • 4 Position Power Distribution Block for 15/30/45A Powerpoles
  • 4 Position Power Distribution Block for 15/30/45A Powerpoles
$33.99
Current Reviews: 0 Add Your Review
 Sold Out

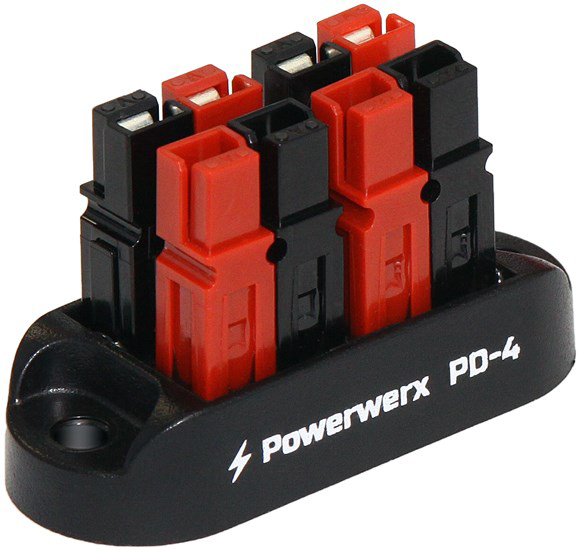

Easy to use 4 position power distribution block for 15/30/45A Powerpole connectors. Innovative design allows each position to use a retention clip for secure operation. Thick copper bus bar construction. Mountable for permanent installations. Rated at 45A.

Easy to use 4 position power distribution block for 15/30/45 amp Powerpole connectors. Convenient for professional installations, at the home or in the field. Proudly designed and manufactured by Powerwerx in the USA.

Tech Specs
Connections 4 Powerpole Connectors
Compatibility Mates with all 15, 30 & 45 amp Powerpole connectors
Maximum Voltage 58VDC
Maximum Amperage 45A (continuous)
Mountable 0.18" diameter mounting holes. Fits #8 screw.
Construction Rugged ABS plastic base. Sealed internal bus bars.
Dimensions 2.33"W x 0.97"D x 1.32"H (59.2mm x 24.6mm x 33.5mm)

Additional Model #'s
78-PD-4
78-PD4
PD-4
PD4

UPC: 840128900000
