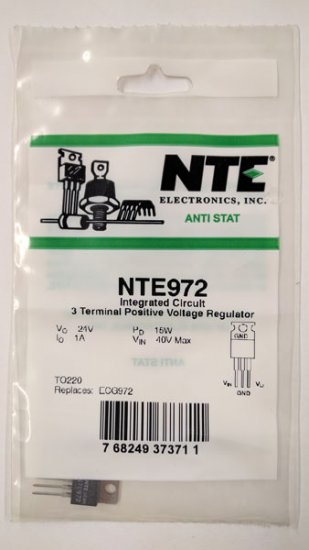

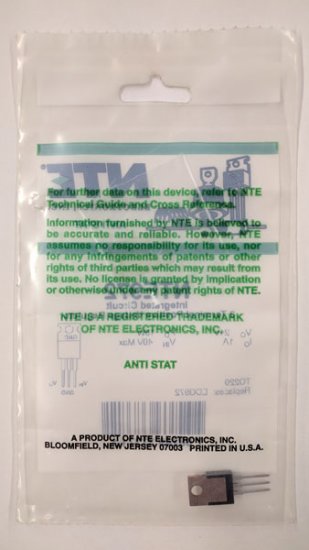

NTE972 IC, 3-Terminal Positive Voltage Regulator, 24V 1A, TO220

Model: NTE972
Availability :  In Stock
  • NTE972 IC, 3-Terminal Positive Voltage Regulator, 24V 1A, TO220
  • NTE972 IC, 3-Terminal Positive Voltage Regulator, 24V 1A, TO220
  • NTE972 IC, 3-Terminal Positive Voltage Regulator, 24V 1A, TO220
$2.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE972
Integrated Circuit
3-Terminal Positive Voltage Regulator, 24V

The NTE972 fixed-voltage regulator is a monolithic integrated circuit in a TO220 type package designed for use in a wide variety of applications including local, on-card regulation. This regulator employs internal current limiting, thermal shutdown, and safe-area compensation. With adequate heat-sinking it can deliver output currents in excess of 1.0 ampere. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.

Features:
Output Current in Excess of 1.0 Ampere
No External Components Reguired
Internal Thermal Overload Protection
Internal Short-Circuit Current Limiting
Output Transistor Safe-Area Compensation

Replaces:
ECG972

Additional Model #'s
76-NTE972
NTE972

UPC: 768249373711
