Data Sheet

NTE950/NTE951/NTE977
Integrated Circuit
Positive 3 Terminal Voltage Regulator, 100mA

Description:
The NTE950, NTE951, and NTE977 are positive 3-terminal voltage regulators in available in a TO92
type package. With adequate heat sinking these regulators can deliver 100mA output current. Current limiting is included to limit peak output current to safe value. Safe area protection for the output transistors is provided to limit internal power dissipation. If internal power dissipation becomes too high for the heat sinking provided, the thermal shutdown circuit takes over preventing the IC from overheating.

When used as a zener diode/resistor combination replacement, these devices usually result in an effective output impedance improvement of two orders of magnitude, and lower quiescent current.
These regulators can provide local on card regulation, eliminating the distribution problems
associated with single point regulation. Typical applications include use in logic systems, instrumentation, HiFi, and other solid state electronic equipment. Although designed primarily as fixed voltage regulators these devices can be used with external components to obtain adjustment voltages and currents.

Features:
Output Voltage Tolerances of ±5% over the Temperature Range
Output Current of 100mA
Internal Thermal Overload Protection
Output Transistor Safe Area Protection
Internal Short Circuit Current Limit

Replaces:
ECG951

Additional Model #'s
76-NTE951

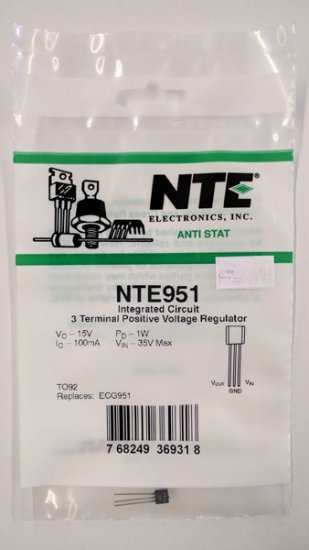

NTE951

UPC: 768249369318
