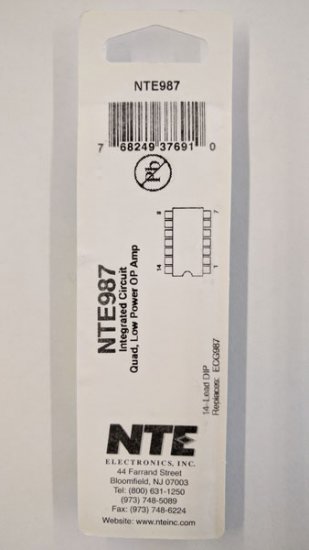

NTE987 IC, Quad, Low Power OP Amp, 14-Lead DIP

Model: NTE987
Availability :  In Stock
  • NTE987 IC, Quad, Low Power OP Amp, 14-Lead DIP
  • NTE987 IC, Quad, Low Power OP Amp, 14-Lead DIP
  • NTE987 IC, Quad, Low Power OP Amp, 14-Lead DIP
$2.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE987/NTE987SM
Integrated Circuit
Quad, Low Power OP Amp

Description:
The NTE987 and NTE987SM are low cost quad operational amplifiers with true differential inputs. These have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3V or as high as 32V with quiescent currents about one fifth of those associated with the NTE941 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.

Features:
Available in 14-Lead DIP (NTE987) and Surface Mount, SOIC-14 (NTE987SM)
Short Circuit Protected Outputs
True Differential Input Stage
Single Supply Operation: 3V to 32V
Four Amplifiers per Package
Internally Compensated
Common Mode Range Extends to Negative Supply
Industry Standard Pin-Outs

Replaces:
ECG987, SK3643

Additional Model #'s
76-NTE987
NTE987

UPC: 768249376910
