Data Sheet

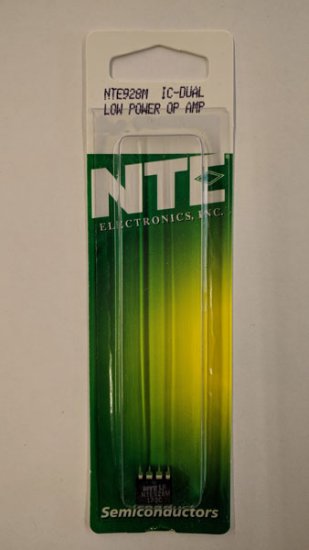

NTE928M & NTE928SM
Integrated Circuit
Low Power Dual Operational Amplifier

Description:
Utilizing the circuit designs perfected for recently introduced Quad Operational Amplifiers, the
NTE928M/NTE928SM dual operational amplifier features low power drain, a common mode input
voltage range extending to ground/VEE, and Single Supply or Split Supply Operation.

This amplifier has several distinct advantages over standard operational amplifier types in single supply applications. It can operate at supply voltages as low as 3.0 Volts or as high as 32 Volts with quiescent currents about one-fifth of those associated with the NTE941 (on a per amplifier basis). The
common mode input range includes the negative supply, thereby eliminating the necessity for external
biasing power supply voltage.

Features:
Short Circuit Protected Outputs
True Differential Input Stage
Single Supply Operation: 3.0 to 32 Volts
Low Input Bias Currents
Internally compensated
Common Mode Range Extends to Negative Supply
Single and Split Supply Operation

Replaces:
ECG928M

Additional Model #'s
76-NTE928M
NTE928M

UPC: 768249365211
