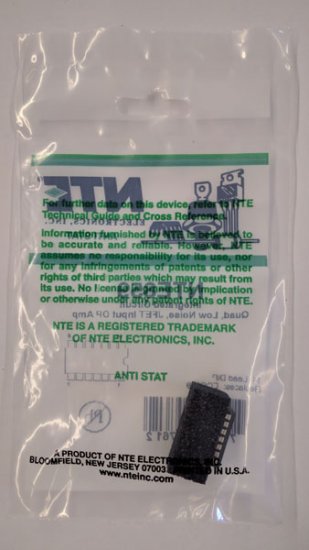

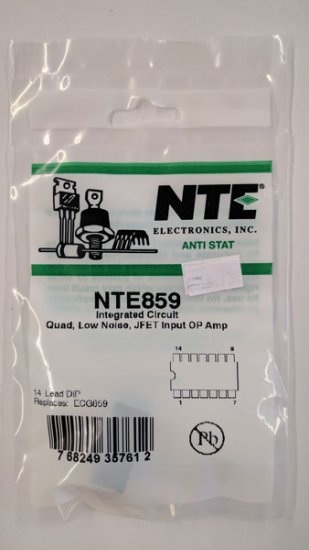

NTE859 IC, Quad, Low Noise, JFET Input Op-Amp, 14-Lead DIP

Model: NTE859
Availability :  In Stock
  • NTE859 IC, Quad, Low Noise, JFET Input Op-Amp, 14-Lead DIP
  • NTE859 IC, Quad, Low Noise, JFET Input Op-Amp, 14-Lead DIP
  • NTE859 IC, Quad, Low Noise, JFET Input Op-Amp, 14-Lead DIP
$4.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE859/NTE859SM
Integrated Circuit
Quad, Low Noise, JFET Input
Operational Amplifier

Description:
The NTE859 (14-Lead DIP) and NTE859SM (SOIC-14 Surface Mount) JFET-input operational amplifiers are low noise amplifiers with low noise input bias, offset currents, and fast slew rate. The low harmonic distortion and low noise make these devices ideally suited as amplifiers for high-fidelity and audio preamplifier applications. Each amplifier features JFET-inputs (for high input impedance)
coupled with bipolar output stages all integrated on a single monolithic chip.

Features:
Low Power Consumption
Wide Common-Mode and Differential Voltage Ranges
Low Input Bias and Offset Currents
Output Short-Circuit Protection
Low Total Harmonic Distortion: 0.003% Typ
Low Noise: Vn = 18nV?HZ Typ
High Input Impedance: JFET-Input Stage
Internal Frequency Compensation
Latch-Up Free Operation
High Slew Rate: 13V/µs Typ

Replaces:
ECG859

Additional Model #'s
76-NTE859
NTE859

UPC: 768249357612
