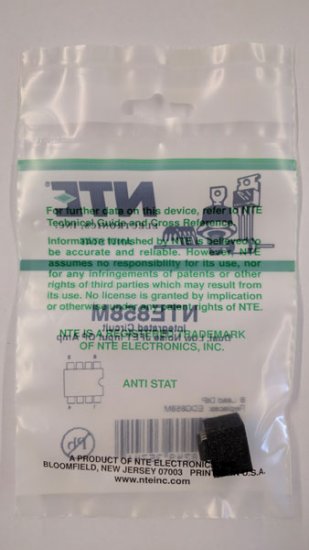

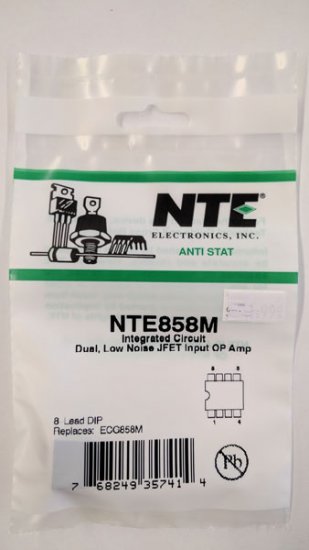

NTE858M IC, Dual, Low-Noise JFET-Input Op-Amp, 8-Lead Mini DIP

Model: NTE858M
Availability : Out of Stock
  • NTE858M IC, Dual, Low-Noise JFET-Input Op-Amp, 8-Lead Mini DIP
  • NTE858M IC, Dual, Low-Noise JFET-Input Op-Amp, 8-Lead Mini DIP
  • NTE858M IC, Dual, Low-Noise JFET-Input Op-Amp, 8-Lead Mini DIP
$2.99
Current Reviews: 0 Add Your Review
 Sold Out

Data Sheet

NTE858M
NTE858SM
Integrated Circuit
Dual, Low-Noise JFET-Input Operational Amplifier

Description:
The NTE858M and NTE858SM are dual, low-noise JFET input operational amplifiers combining two
state-of-the-art linear technologies on a single monolithic integrated circuit. Each internally compensated operational amplifier has well matched high voltage JFET input devices for low input offset voltage. The BIFET technology provides wide bandwidths and fast slew rates with low input bias currents, input offset currents, and supply currents. Moreover, these devices exhibit low-noise and low
harmonic distortion making them ideal for use in high-fidelity audio amplifier applications.

Features:
Available in Two Different Package Types:
8-Lead Mini DIP (NTE858M)
SOIC-8 Surface Mount (NTE858SM)
Low Input Noise Voltage: 18nV?Hz Typ
Low Harmonic Distortion: 0.01% Typ
Low Input Bias and Offset Currents
High Input Impedance: 1012? Typ
High Slew Rate: 13V/µs Typ
Wide Gain Bandwidth: 4MHz Typ
Low Supply Current: 1.4mA per Amp

Replaces: ECG858M

Additional Model #'s
76-NTE858M
NTE858M

UPC: 768249357414
