Data Sheet

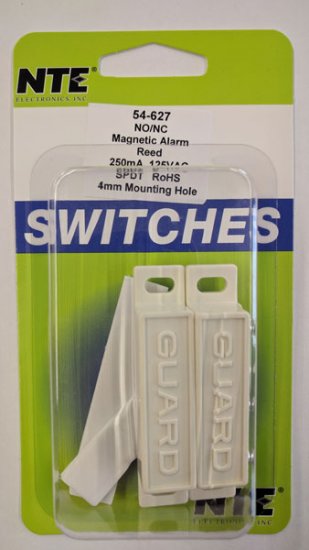

SWITCH MAGNETIC ALARM REED
SPDT 3W/VA NO OR NC SCREW TERMINALS

Specifications
Contact Rating: 3 W/VA
Contact Resistance: 200 megohms
Contact Material: Ruthenium Oxide over Rhodium
Voltage Rating: 125 VAC, 100 VDC
Switching Current: 250mA
Insulation Resistance: 10 gigohms
Shock Resistance: nil
Vibration Resistance: nil
Life Expectancy: 10,000,000 cycles
Operating Gap: 1.180” (3cm) max.
Terminal Type: Screw
Mounting Hole: 0.157” (4mm)

Additional Model #'s
75-54-627
75-54627
54-627
54627

UPC: 768249120148
