Manual/Spec Sheet

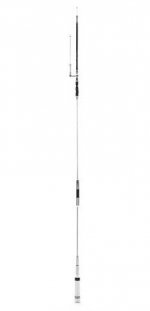

10M/6M/2M/440MHz QuadBand Mobile Antenna
Designed for use with the FT-8900 or multiple radios

Tunable on 10M & 6M by adjusting the stingers at the top of the antenna

Gain & Wave:
10M and 6M: 1/4 wave 0dBi
146MHz: 1/2 wave 2.15dBi
446MHz: 5/8 wave x 2 5.5dBi
VSWR: 1.5:1 or less
Max Power:
10M 120W SSB
6M 200W/100W FM
2M -70cm: 100W FM
Length: 54? (approx)
Weight: 1lb 6ozs
Connector: PL-259

Additional Model #'s
215-UHV-4
215-UHV4
UHV-4
UHV4
