Data Sheet

3528 Size Flexible LED Strips

Features:
Available in 3 Different Waterproof Ratings
Non-Waterproof (IP20)
Water Resistant (IP65)
Waterproof (IP68)
Adhesive Back, Peel & Stick (EXCLUDING WP Suffix)
Available in 100 Ft (30.48 Meter) Reels, 16.4 Ft. (5 Meter) Reels,
and 19.69 In (0.5 Meter) Pre-Cut Strips
Standard 16.4 Ft. (5 Meter) Reels can be cut to smaller lengths

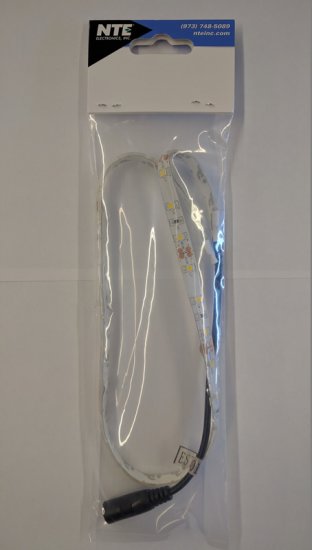

Pre-Cut 19.69 In (0.5 Meter) Strips come Pre-Wired with a
69-A1 Connector already Attached
2 Different LED Densities
30/Strip or 60/Strip (0.5 Meter Lengths)
300/Reel or 600/Reel (5 Meter Lengths)
RoHS Compliant
Very Bright and Low Power Consumption
Dimmable to 6V DC
Applications Include: Interior Lighting, Ceilings, Shelves,
Cabinets, Showcases, Motor Homes, RV’s, Boats and Aviation

Specifications:
Viewing Angle: 120
Voltage: 12V DC (69-36W-100-24 is 24V)
Wattage per Reel:
30 LED Count: 2.4W
60 LED Count: 4.8W
300 LED Count: 24W
600 LED Count: 48W
Operating Temperature: -20 to +50 C
Storage Temperature: -30 to +80 C
Life Span: 50,000 hours min

Additional Model #'s
72-69-36WW-WR-02
72-6936WWWR02
69-36WW-WR-02
6936WWWR02

UPC: 768249180999
