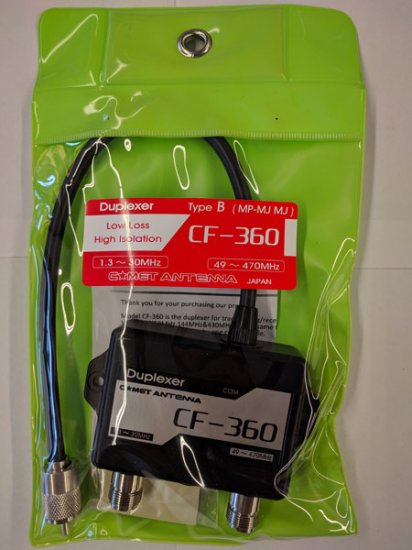

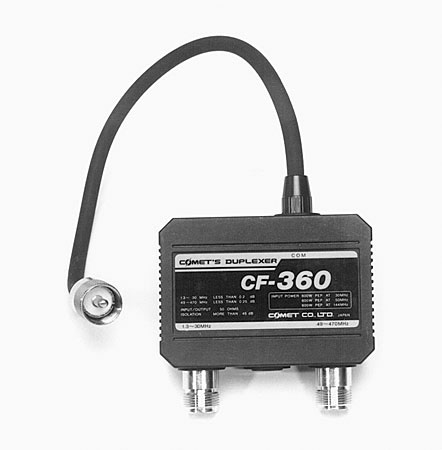

HF/6M – 440MHz Duplexer

Band Pass Ins Loss Max Power
Low Pass: 1.3-30MHz 0.2dB 600W PEP
High Pass: 49-470MHz 0.2dB 600W PEP

Isolation: 45dB minimum

CONNECTORS:
Common: PL-259
Low Pass: SO-239
High Pass: SO-239

If you are in need of splitting off your HF, VHF, or UHF signals, then Comet Duplexers are what you are looking for.

Sometimes referred to as combiners or splitters, these duplexers are basically band-pass filters, simultaneously passing RF in both directions through the common connector, while the band-pass filters provide a high degree of isolation between ports.

Additional information:
TX and RX from two radios at the same time into a dual-band antenna.
Combine a dual-band radio with separate outputs into a dual-band antenna.
Separate a single connector duplexed radio into separate antenna systems.
Allow a single coax run into two antennas at the top of the tower, and two radios at the bottom by using a duplexer at both ends of the coax run, avoiding additional coaxial cost and weight.
