Data Sheet

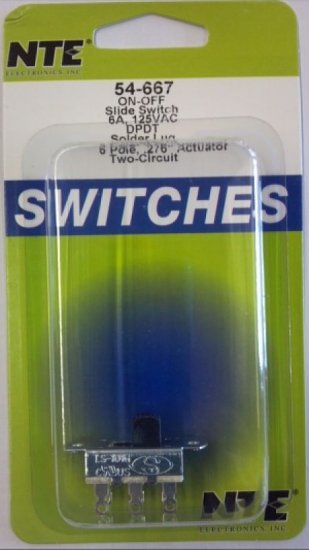

SWITCH SLIDE DPDT ON-OFF 6A 125VAC 3A 250VAC
.28 INCH ACTUATOR SOLDER TERMINALS

Features:
Sequence - Load 1 ON, Load 2 OFF; Load 2 OFF, Load 1 ON

Specifications:
Current Rating: 0.5A 125V, 3A 250VAC, 6A 125 VAC
Insulation Resistance: 150 Megohms (min.)
Dielectric Strength: 1500V RMS (min.)
Temperature Resistance: +221 F (+105 C)
Temperature Rating: +32 to +185 F (+0 to +85 C)
Electrical Life: 6,000 cycles (min.)
Mechanical Life: 6,000 cycles (min.)
Terminal Type: Solder Lug
Mounting Hole: 0.551" (14.0mm) x 0.276" (7.0mm)

Additional Model #'s
75-54-667
75-54667
54-667
54667

UPC: 768249292142
