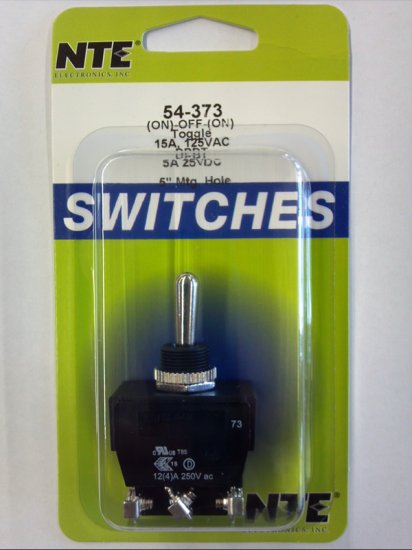

Bat Handle Toggle Switch DPDT (On)-Off-(On) 125V 15A

Model: 54-373
Availability : Out of Stock
  • Bat Handle Toggle Switch DPDT (On)-Off-(On) 125V 15A
  • Bat Handle Toggle Switch DPDT (On)-Off-(On) 125V 15A
  • Bat Handle Toggle Switch DPDT (On)-Off-(On) 125V 15A
$17.99
Current Reviews: 0 Add Your Review
 Sold Out

Data Sheet

SWITCH BAT HANDLE TOGGLE DPDT 15A 125VAC (ON)-OFF-(ON) SCREW TERMINALS

Specifications:
Current Rating:
A: 15A 250VAC or 10A 24VDC, 15A 12VDC
B: 15A 250VAC,
C: 15A 125VAC, 12A 250VAC or 5A 25VDC
Insulation Resistance: 1000 Megohms (min.) at 500VDC
Dielectric Strength: 2000V RMS (min.) between terminals
Temperature Rating: -4 to +131 F (-20 to +55 C)
Electrical Life: 10,000 cycles (min.) at full load
Terminal Type: Refer to Diag No. in Table
Mounting Hole: 0.480" (12.2mm)

Additional Model #'s
75-54-373
75-54373
54-373
54373

UPC: 768249085843
