Data Sheet

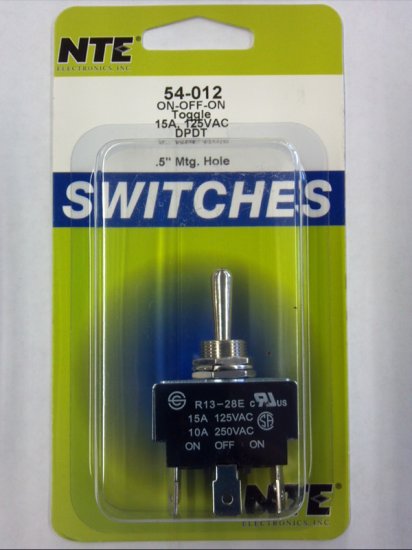

SWITCH TOGGLE DPDT 15A ON-OFF-ON 125VAC .250 QUICK CONNECT TERMINALS

Specifications:
Current Rating:
15A 125−277VAC, 1 1/2 HP 125VAC, 2 HP 250VAC
Insulation Resistance: 100 Megohms (min.)
Dielectric Strength: 1000V RMS (min.)
Temperature Rating: +32 to +185 F (0 to +85 C)
Electrical Life: 25,000 cycles
Mechanical Life: 100,000 cycles
Terminal Type: 0.025" Quick Connect Terminals
Mounting Hole: .500 (12.7)

Additional Model #'s
75-54-012
75-54012
54-012
54012

UPC: 768249066545
