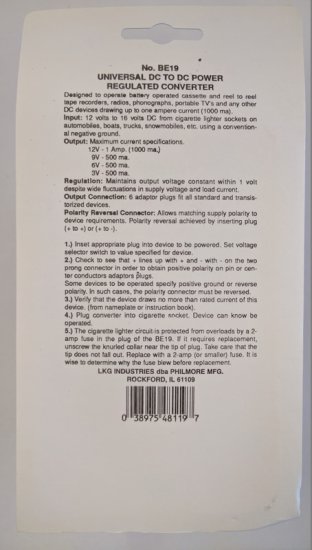

Manual/Spec Sheet

Regulated Mobile DC-DC Converter
3-6-9-12 VOLTS DC

Designed to power battery operated equipment drawing up to 1 amp. current (1000mA). Completely regulated and maintains voltage constant within 1 Volt despite wide variations in load current. Accepts 12-16VDC input from conventional negative ground.

Maximum Current Specifications:
12VDC - 1Amp. (1000mA)
9VDC - 500 mA
6VDC - 500 mA
3VDC - 300 mA

Comes with 6 adaptor plugs to match nearly all applications.
Polarity reversal achieved by rotating adaptor plugs 180º.

Additional Model #'s
73-BE19
BE19

UPC: 038975481197
