Manual/Spec Sheet

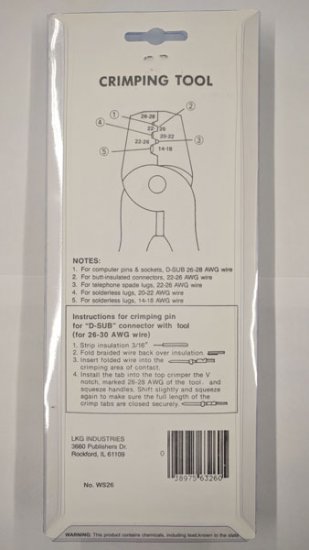

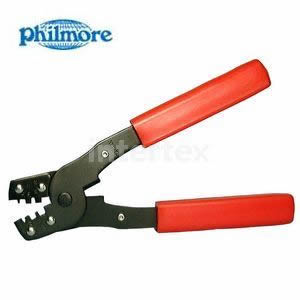

Notes:
1. For computer pins & sockets, D-Sub 26-28Awg wire
2. For butt insulated connectors, 22-26Awg wire
3. For telephone spade lugs, 22-26Awg wire
4. For solderless lugs, 20-22Awg wire
5. For solderless lugs, 14-18Awg wire

Instructions for crimping pin for "D-Sub" connector with tool (For 26-30Awg Wire)
1. Strip insulation 3/16"
2. Fold braided wire back over insulation
3. Insert folded wire into the crimping area of contact
4. Install the tab into the top crimper the V notch, marked 26-28Awg of the tool, and squeeze handles. Shift slightly and squeeze again to make sure the full length of the crimp tabs are closed securely.

Additional Model #'s
225-WS26
WS26

UPC: 03897563260
