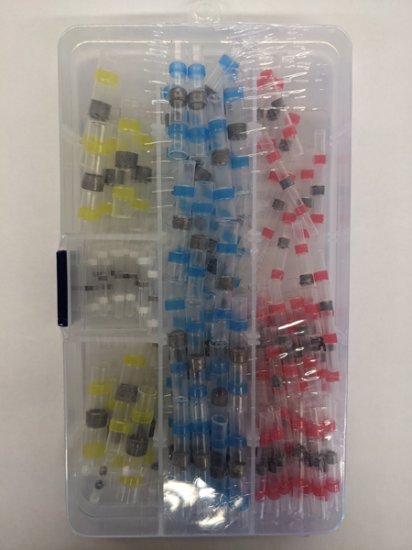

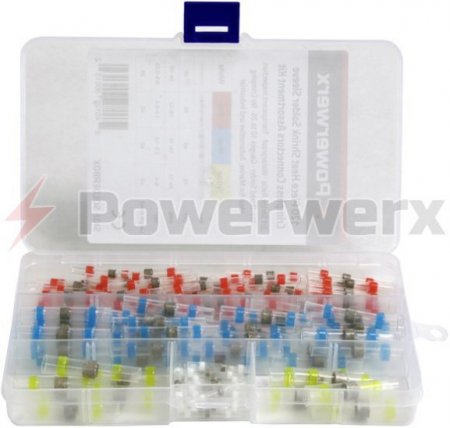

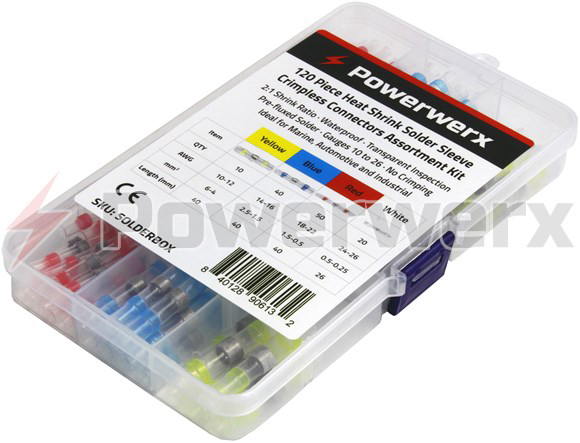

Assortment of Insulated Solder Sleeve Crimpless connectors in 4 sizes. 12-10 AWG (yellow), 16-14 AWG (blue), 22-18 AWG (red), and 26-24 AWG (white) wire sizes. Wide range of applications including: marine, auto, RV and hobbies. Simple one step design, just insert the wires and apply heat, no crimping required. Kit includes 120 pieces in a clear organizer case.
Transparent Polyolefin heat shrink tubing, Solder and Adhesive Glue Ring. Simple one step soldering, sealed and insulated butt type connectors. 2:1 Shrink Ratio. Finished connectors insure strong connection with strain relief and waterproof type connection.
Application: Wire connecting - butt splice type.
Easy Identification: Color coded connector tubing (White, Red, Blue & Yellow)
Gauges: 10-26 gauge
Simple one step wire connections, no crimp tool required
Internal: Pre-formed solder ring
Outer Material: Polyolefin tubing
Operating Temperature: -55º C to 125° C
Minimum Shrink Temperature: 80° C
Minimum Solder melting Temperature: 138° C
Complies with CE Standards
Package Contents
10 pcs 12-10 AWG (Solder-1210)
40 pcs 16-14 AWG (Solder-1614)
50 pcs 22-18 AWG (Solder-2218)
20 pcs 26-24 AWG (Solder-2624)
Additional Model #'s
78-SOLDERBOX
SOLDERBOX
UPCV: 840128906132
