FR - 4 FIBERGLASS AND PHENOLIC PROTOBOARDS

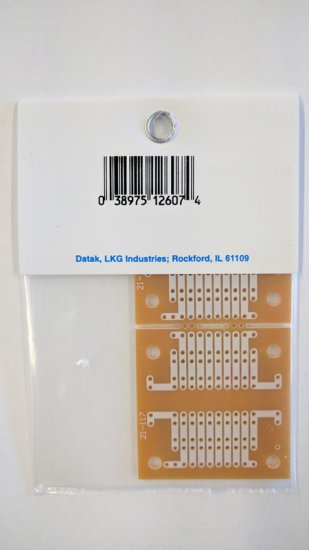

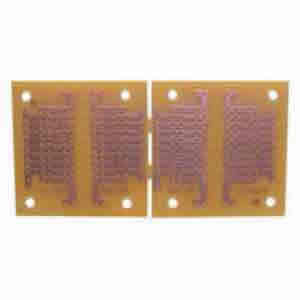

Small IC Protoboard.
Size 1.8” wide by 3.6” long. The board accommodates standard DIP (dual inline) IC’s. Two smaller, identical boards and scored for easy break-apart when only a very small board is needed. Hole spacing on 1/10” centers, copper one side.

Datak Protoboards, Available in fiberglass for R.F. and digital circuits. In addition to use at high frequencies, fiberglass provides better characteristics in higher temperature environments, those with exposure to humidity. Choose from phenolic for economy or the new fiberglass substrate.

Datak Protoboards have copper one side, and are printed on the (opposite) component side to aid in keeping track of where copper side traces are located. Holes accept standard component leads, including IC’s, and are spaced on standard 0.10” centers. Board material is standard 1/16” thickness for both materials. FR-4 material dielectric constant is 4.7 at 1MHz and 4.25 at 1 GHz. typical.
