Data Sheet

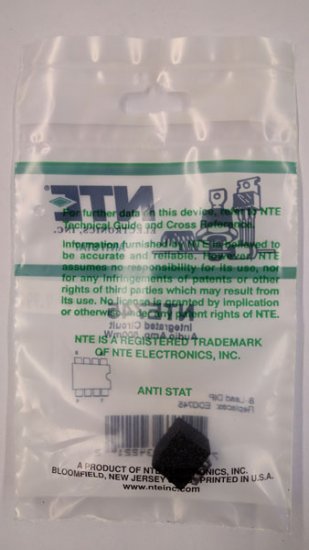

NTE745
Integrated Circuit
Audio Amplifier, 500mW

Description:
the NTE745 is a monolithic complementary power amplifier and preamplifier designed to deliver
1/2-Watt into a loudspeaker with a 3.0mV(rms) typical input. Gain and bandwidth are externally adjustable. Typical applications include portable AM-FM radios, tape recorders, phonographs, and intercoms.

Features:
1/2-Watt Power Output (9.0 Vdc Supply, 8-Ohm Load)
High Overall Gain-3.0mV(rms) Sensitivity for 1/2-Watt Output
Low Zero-Signal Current Drain-4.0mAdc @ 9.0V typ
Low Distortion-0.5% at 250mW typ

Replaces:
ECG745

Additional Model #'s
76-NTE745
NTE745

UPC: 768249342212
