Data Sheet

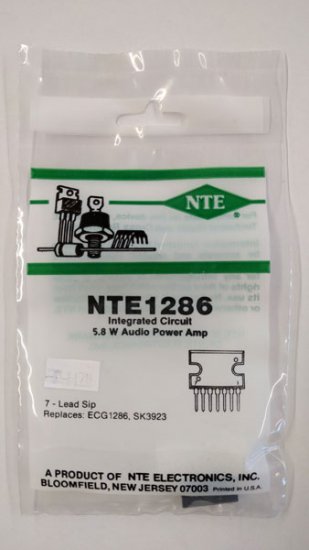

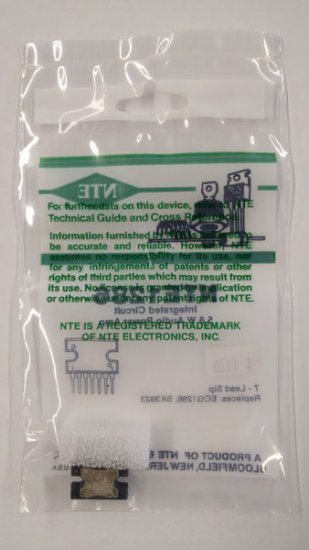

NTE1285 & NTE1286
Integrated Circuit
Audio Power Amplifier, 5.8W

Description:
The NTE1285 and NTE1286 are audio power amplifiers in a 7-Lead SIP type package designed especially for car radio and car stereo applications. These devices are encapsulated in newly developed
small packages featuring low thermal resistance, providing easy design for 2?. At 14.4V the devices
give output power of 7W with RL = 4? and 11W with RL = 2?.

Features:
High Output Power
Low Transient Noise at Power Supply Switch ON
Mirror Image Pin Configurations
Protection Circuits are Provided for the Following:
Load Dump Protection
Thermal Shut-Down Protection
Overvoltage Protection
Output Terminal Short-Circuit Protection

Replaces:
ECG1286, SK3923

Additional Model #'s
76-NTE1286
NTE1286

UPC: 768249025818
