Data Sheet

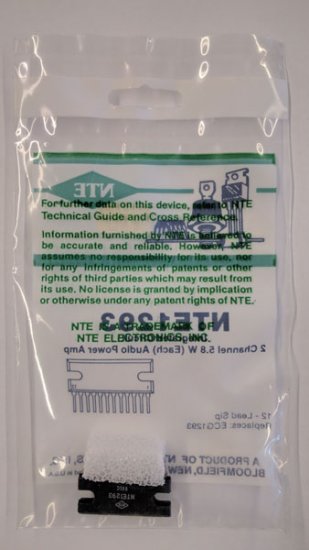

NTE1293
Integrated Circuit
Dual, Audio Power Amp, 5.8W/Ch

Description:
The NTE1293 is a dual audio power amplifier in a 12-Lead SIP type package specifically designed
for car stereo applications. This device provides an output power of 7W/Ch to a 4? load with 10%
THD at 14.4V power supply.

Features:
Very Low Number of External Components Required
Easy Mounting with No Electrical Isolation Between the Package and Heat Sink
Very Low Transient Noise at Power Switch-On
No Damage for Reverse Insertion on the PC Board
Thermal Shut-Down Circuit Included
Load Dump Protection Circuit Included

Replaces:
ECG1293

Additional Model #'s
76-NTE1293
NTE1293

UPC: 768249026716
