Features:
Tripath TA2020 amplifier chip provides efficient, powerful sound
Multiple audio inputs
Lightweight and sturdy aluminum enclosure
Compact size

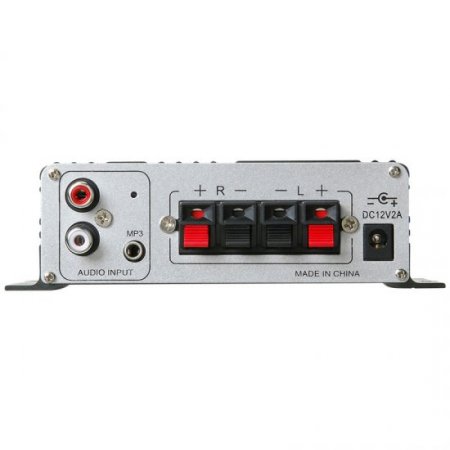

Convenient speaker output spring terminals

Overview:
The Lepai LP-2020A+ uses the Class-T Tripath TA2020 Audio Amplifier IC for low distortion, acoustically accurate reproduction of music. Ideal for both home and car audio applications.

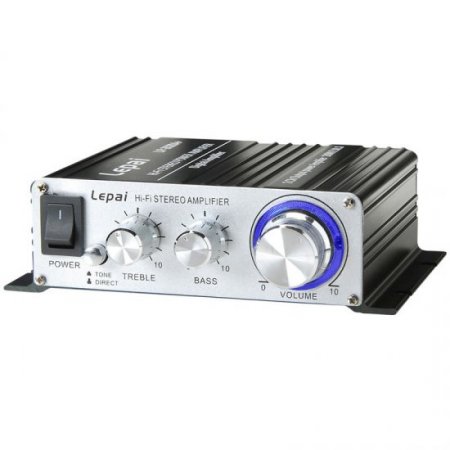

Tone/Direct switching allows for customized listening via separate Bass and Treble adjustments or original audio source signal can be passed through without
enhancement.

Built-in loudspeaker protection circuit triggers when the amplifier is turned on to protect speakers from high volume bursts of audio.

Over-voltage protection circuit shuts down amplifier should input voltage exceed 14.4 Volts DC.

State of the art design using surface mount components and advanced engineering for proven performance, reduced signal interference, and long operational life.

Specifications:
Input power: DC10-14.4V >2A
Output power: 20W x 2 RMS
Speaker impedance: 4-8 Ohm
Frequency response: 20Hz-20KHz
Minimum THD: <0.5%
SNR: >80dB
Input Sensitivity: 200 mV
Input Impedance: 47k Ohm

Additional Model #'s
231-LP-2020
231-LP2020
LP-2020
LP2020
LP2020A+

UPC: 844632088353
