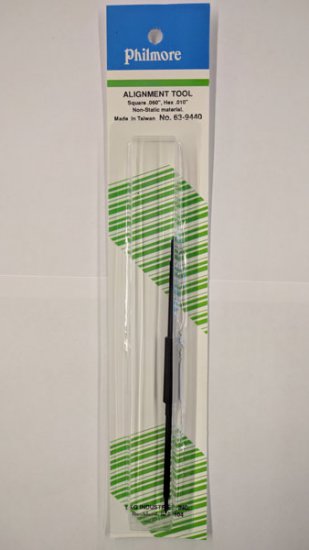

SQUARE and HEX ALIGNMENT TOOL
Square: .060” Hex: 0.10”

A double-ended, anti-static alignment tool for ferrite core transformers.
One end is a square .060” Tip with an additional protruding flat (.024” thick) blade. The other end is a 0.10” hex with a protruding (.039” thick) blade.

Replaces types 9440 and AS9440.

Additional Model #'s
264-63-9440
264-639440
63-9440
639440

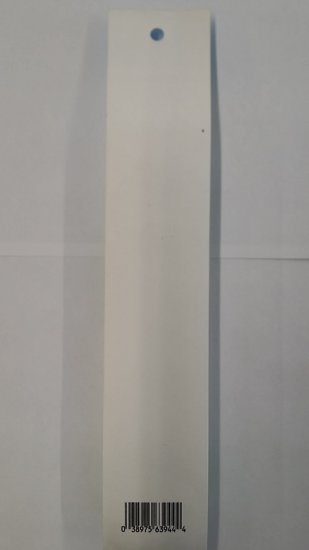

UPC: 038975639444
