Data Sheet

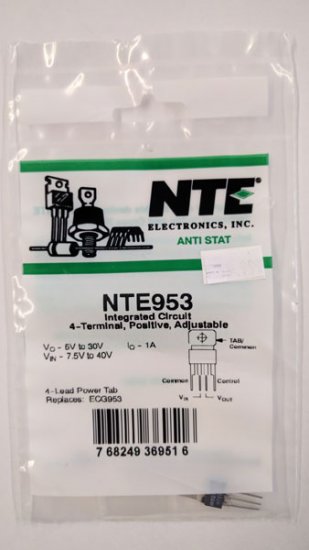

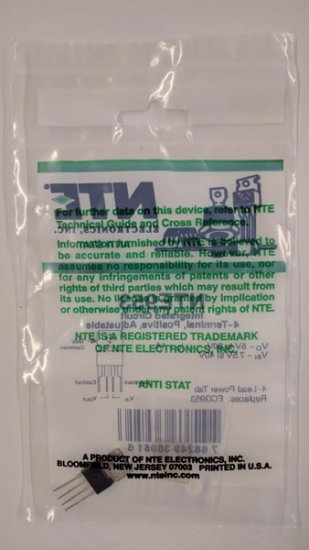

NTE953
Linear Integrated Circuit
4-Terminal Positive Adjustable Voltage Regulator

Description:
The NTE953 4-Terminal adjustable voltage regulator is designed to deliver continuous load currents
of up to 1.0A with a maximum input voltage of +40V. Output current capability can be increased to
greater than 1.0A through the use of one or more external transistors. The output voltage range is
5V to 30V. For systems requiring both a positive and negative, the NTE953 and NTE954 are excellent
for use as a dual tracking regulator with appropriate external circuitry.

Features:
Output Current in Excess of 1A
Positive Output 5V to 30V
Internal Thermal Overload Protection
Internal Short Circuit Protection
Output Transistor Safe-Area Protection
Power Watt Package

Replaces:
ECG953

Additional Model #'s
76-NTE953
NTE953

UPC: 768249369516
