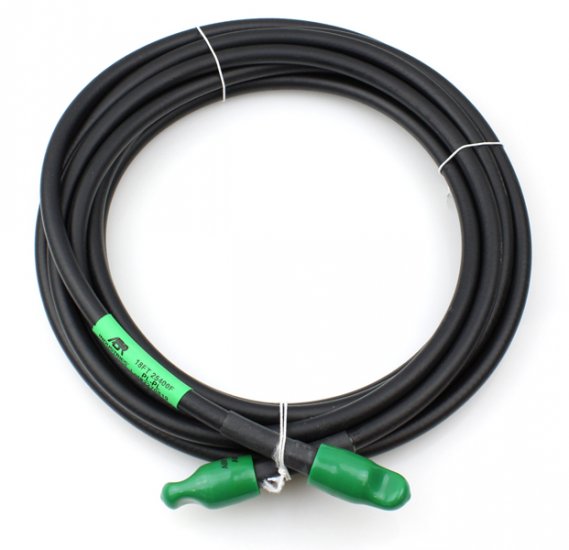

Manual/Spec Sheet Stranded Center, 50 Ohm, .405” diameter cable, Black Jacket Model Number / Part Number: ABR400-UF / 25400F Description: 50 Ohm Low Loss 400 Size Type 2 JKT – Black Suitable application: Low Loss RF Communication Physical Characteristics Center Awg: 10ga Stranding: 19 strand Conductor Material: Copper Dielectric Material: Gas Injected Foam Polyethylene Nominal Diameter: .295” Tape material: Bonded Aluminum/polyester/aluminum tape Braid Awg: 36 Braid Material: Tinned Copper Braid Coverage: Foil + 95% Final Jacket Material: Non-Contaminating PVC Nominal Thickness: .028” Nominal Diameter .405” Final Jacket Color: Black Nominal Attenuation Impedance: 50 Ohms Capacitance: 24.6 pF/foot Velocity of Prop: 84% Attenuation / Average Power Frequency (MHz) Nom db/100 Average Power (KW) 30 0.8 2.77 50 1.1 2.14 150 1.8 1.22 220 2.2 1.00 450 3.3 0.69 900 4.7 0.48 1500 6.2 0.36 1800 6.8 0.33 2000 7.2 0.31 2500 8.1 0.28 5800 13.0 0.17 Additional Model #'s 221-25400F-PL-18 221-25400FPL18 25400F-PL-18 25400FPL18
