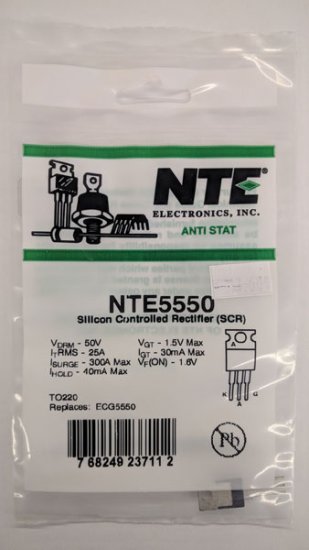

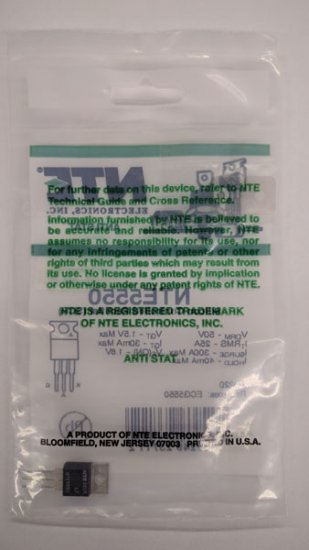

NTE5550 thru NTE5558
Silicon Controlled Rectifier (SCR)
25 Amp, TO220

Description:
The NTE5550 thru NTE5558 SCR’s are designed primarily for half-wave AC control applications, such as motor controls, heating controls and power supply crowbar circuits.

Features:
Glass Passivated Junctions with Center Gate Fire for Greater Parameter Uniformity and Stability.
Small, Rugged, Thermowatt Constructed for Low Thermal Resistance, High Heat Dissipation and Durability.
Blocking Voltage to 800 Volts
300A Surge Current Capability

Replaces:
ECG5550

Additional Model #'s
76-NTE5550
NTE5550

UPC: 768249237112
