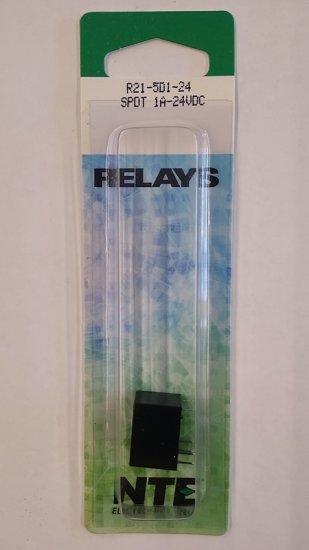

Data Sheet

Features:
Subminiature Size for High Density Packaging
Epoxy Sealed
Class B Insulation

Electrical Specifications:

Contact:
Rating: See chart
Contact Material: Silver nickel, gold plated
Contact Resistance: 0.1 Ohms Max. initial

Coil:
Coil Voltages: See Chart
Drop−out Voltage: Greater than 10% of nominal coil voltage
Resistance: See Chart

Operational Characteristics:
Timing Value Operate Time: . . . . . . Approx 5 mS
Release Time: Approx 1 mS
Insulation Characteristics
Dielectric Strength
Contact To Coil: 1250 VRMS
Across Open Contacts: 750 VRMS
Insulation Resistance: 100 megohms Min.
@ 500 VDC

Environmental Characteristics:
Operating: -25°C to +95°C (1A Type)
Operating: -25°C to +85°C (2A Type)
Mechanical Life: 100,000,000 operations min

Weight:
Std: 3.5 gram approx.

Additional Model #'s
75-R21-5D1-24
75-R215D124
R21-5D1-24
R215D124

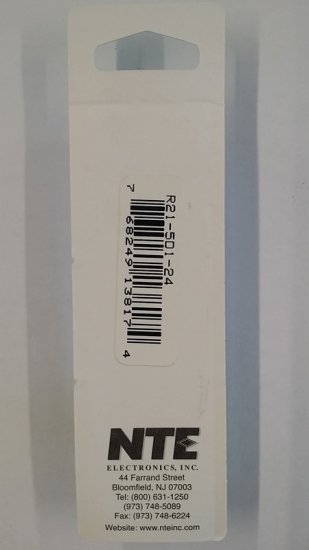

UPC: 768249138174
