Data Sheet

NTE1V010 thru NTE1V300
NTE2V010 thru NTEV480
NTE524V13 thru NTE524V48
Metal Oxide Varistors (MOV)

Description:
The NTE Metal Oxide Varistors feature a barrier layer that gives the user fast response time. These devices have a high transient current handling capability when high voltage is applied. Static resistance is, however, very high under low voltage conditions, permitting low standby drain currents.

The NTE 1V Series Varistors have a non-linear voltage/current characteristic as expressed by the relationship:
I = KVn
Where I = The current in amperes
V = The voltage
K = A constant
n = A constant which shows the dependence of
the voltage V upon the current I. It is called
the voltage-dependant index

Features:
High Transient Current Capability - up to 6500A
Fast Response Time - less than 35ns
Excellent Voltage Clamping Characteristics
Very Low Temperature Coefficient
Low Standby Current
High Energy Capability
The Value for “n” is Greater
Very Low Leakage Current
Low Capacitance
Low Overshoot Characteristics

Additional Model #'s

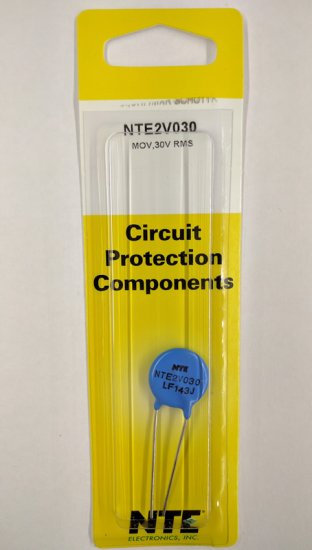

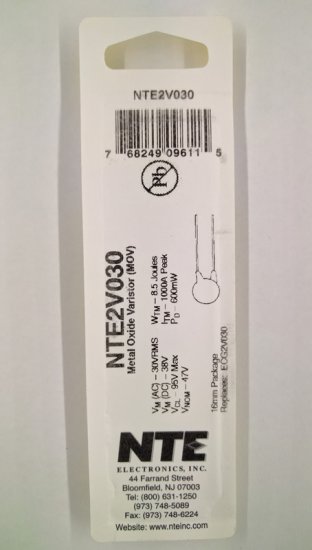

76-NTE2V030
NTE2V030

UPC: 768249096115
