Manual/Spec Sheet

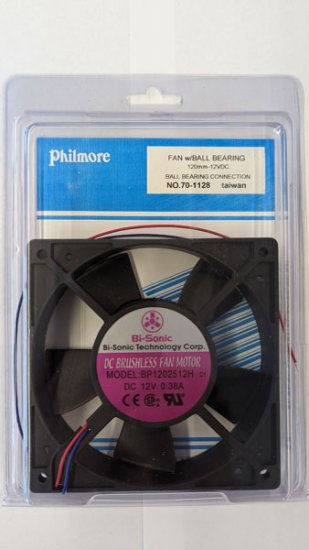

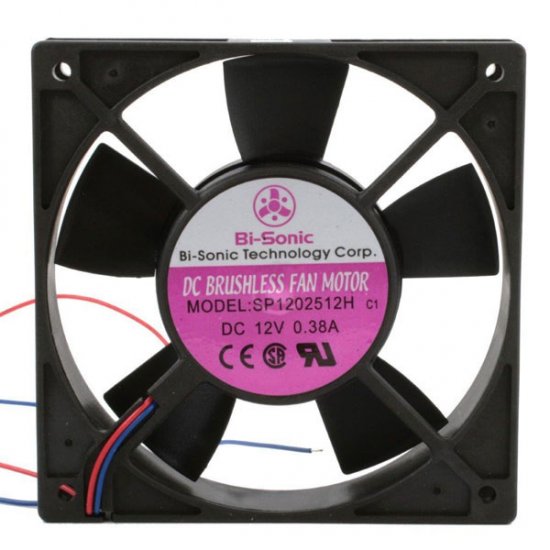

These cooling fans are quite popular in electronic equipment. They are available in several
voltages and CFM ( cubic feet per minute) air flow types. The fans have brushless DC motors
which are polarity protected.

This minature cooling fan is popular in small electronic equipment including computers where heat neads to be removed to avoid equipment failure.

Specifications:

Motor: DC Brushless
Case & Impeller: 94V-0 Plastic
Operating Temperature: -10° C - 50°C
Life Expectancy: 70,000 hours
UL, CUL, CSA Approvals
Thickness: 25mm
Speed: 3000 RPM
Max. CFM 86
Noise: 42 dB
Bearing Style: Ball
Voltage: 12 VDC
Current: 380mA

Bisonic Technology Corp Model#
BP102512H

Additional Model #'s
225-70-1128
225-701128
70-1128
701128

UPC: 038975711287
