This dual metered digital (Amps/Volts) power supply features user variable output (5~16 VDC) by adjusting the front mounted knob, or fixed 14.1 VDC output. Rear power output via 1/4" binding posts. Supplies up to 25 amps continuous, 28 amps surge.
The Powerwerx dual metered digital power supply model SPS-30DM is designed to supply 25 Amps continuous and 28 Amps surge. It features user variable output (5~16 VDC) by adjusting the front mounted knob, or fixed 14.1 VDC output. Power output is through the rear mounted 1/4" binding posts.
SPS-30DM Features
Dual Metered Digital (Amps/Volts) Power Supply

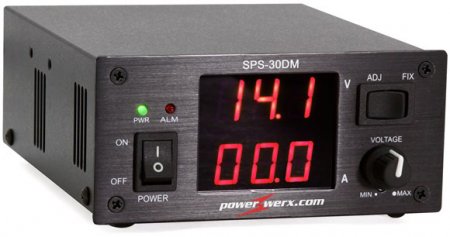

User Selectable variable output voltage from 5~16 VDC by adjusting the front mounted knob or fixed output at 14.1 VDC

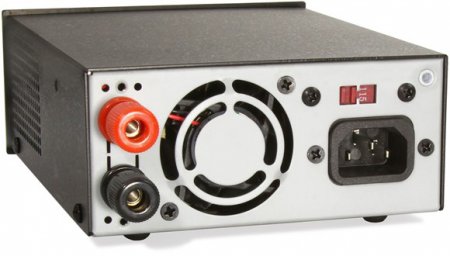

Rear Connection: 1/4 inch binding posts that also accept banana plugs or compression connections
Specifications
Electrical specifications:
Input Range: 100-120 VAC or 200-240 VAC, 50/60Hz (User switchable)
Output Voltage: variable 5~16 VDC
Output Amperage: 25 continuous, 28 surge
Polarity Ground: Negative
Internal Protection: Thermal, over current
Internal Input Fuse: 6.3 Amps at 115 VAC
Ripple Peak-to-Peak Max. <100mVpp
Noise Peak-to-Peak Max. <100mVpp
Operating temperature rating: 0 ~ 50 °C
Storage temperature: -20 ~ 85 °C
Meter Tollerance: ±3%
Physical dimensions and materials:
Weight: 3.7 lbs. (59 oz.)
Overall Dimensions: 6.1 x 5 x 2.5 in (154mm long, 127mm wide, 63mm tall)
Fan: Quiet internal cooling fan
Machined metal case front bezel
Certifications
Meets FCC CFR Title 47 Part 15 Subpart B: Class B, CISPR: 2005 ANSI C63.4: 2003
Meets CE/LVD (Low-Voltage Directive 2006/95/EC) standard
Meets EMC: EN 55022:206+A1: 2007, 2010, EN 61000-3-2:2006
Input Voltage Selection
The power supply is set up for 230V AC input as shipped from the factory. For 115V AC applications, set the recessed 115/230 input select switch located on the rear of the power supply into the proper position. Positions are identified on the switch. Use a small screwdriver to slide the switch into position. No adjustment is necessary for either 50 or 60 Hz input.
Applications
Land mobile radio base stations
Communications systems
Security systems
Automotive & marine systems
OEM applications
Test equipment
Electronic displays
12 Volt lighting systems
GPS receivers
DC computers
Package Contents
Power Supply
AC Power Cord, 4 ft.
Installation Instructions
Unplug the power supply from the mains supply outlet.
Select the correct input voltage (See Input Voltage Selection).
Connect the power cable’s positive (red) wire to the positive terminal and connect the negative (black) wire to the negative terminal on the back of the power supply.
Plug the AC power cable into the power socket on the back of the radio.
Plug the power supply into the main AC wall outlet.
Turning the power supply on
Turn the power supply on by pressing the power switch to the 'ON' Position.
Turning the power supply off
Before you turn the power supply off, turn the radio off as described in the user documentation for the radio. Then turn the power supply off by pressing the power switch to the 'OFF' Position.
Cooling
The SPS-30DM power supply is cooled by convection and forced air cooling (normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use). The fan is temperature activated and the speed is controlled by a sensor. When the temperature rises, the fan speed increases.
Additional Model #'s
73-SPS-30DM
73-SPS30DM
SPS-30DM
SPS30DM
Barcode: 840128904220
