"Cleanest, Most Advanced Power Supply in the Market"

POWER SUPPLIES OF THE NEXT GENERATION, ENGINEERED WITH ALINCO'S FINEST COMMUNICATION TECHNOLOGY, PHILOSOPHY WITH UTILIZING HIGHEST QUALITY COMPONENTS AND "CLEANEST POWER SUPPLY IN IT'S CLASS".

Features

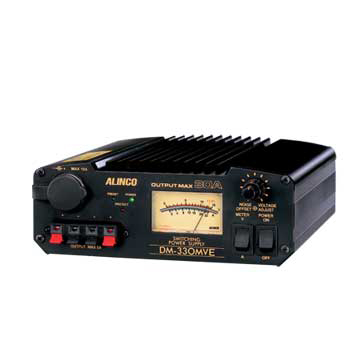

The combination of high-quality space-saving components and high efficiency switching technology made it possible for the DM-330MV to be super-compact and easy to carry for portable operations and still generate a high continuous output !
Alinco's communication technology has created a patent-pending Noise-Offset circuit to eliminate the pulse-noise of the switching circuit for the customer who demands more.
Safety protections are also very important. The DM-330MV comes with short circuit protection, a current-limiting system and extreme temperature protection.
The programmable pre-set voltage function makes the DM-330MV even easier to use. Just store the most frequently used voltage in the memory, and it is constantly ready to go.
Vast output terminal convenience is just one more benefit of the DM-330MV ! A cigar-plug socket (Max 10A), a set of Max current terminals, and 2 sets of snap-in terminals (Max 5A) are conveniently laid-out and offer numerous variations for its operation.
A big, highly visible, back-lit Amp/V meter displays the status of the operation for added convenience.

SPECIFICATIONS
Input voltage: AC 120VAC (50/60Hz)
Output voltage : 5 to 15VDC variable
Output voltage variation: less than 2%
Protection: short-circuit, Automatic current limiting over 32A over-temperature
Output current: 32A(max), 30A(continuous)
Ripple: less than 15mVp-p at rated load
Fuse: 8A
Meter: single volt/current meter, back-lit
Size: 175(w) x 67(h) x 165(d) mm
Weight: approx. 2 Kg (4 lbs)

Additional Model #'s
73-DM-330MVT
73-DM330MVT
DM-330MVT
DM330MVT

UPC: 4969182310115
