Manual/Spec Sheet

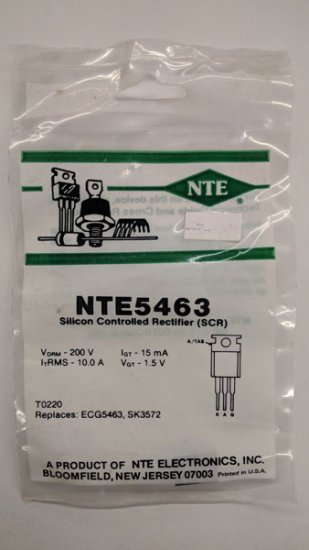

NTE5461 thru NTE5468
Silicon Controlled Rectifier (SCR)
10 Amp, TO220

Description:
The NTE5461 through NTE5468 series silicon controlled rectifiers are designed primarily for half-wave AC control applications such as motor controls, heating controls, and power supplies; or wherever half-wave silicon gate-controlled, solid-state devices are needed. These devices are supplied in a TO220 type package.

Features;
Glass Passivated Junctions and Center Gate Fire for
Greater Parameter Uniformity and Stability
Small, Rugged, Thermowatt Construction for
Low Thermal Resistance, High Heat Dissipation, and Durability
Blocking Voltage to 800 Volts

Replaces:
ECG5463, SK3572

Additional Model #'s
76-NTE5463
NTE5463

UPC: 768249229414
